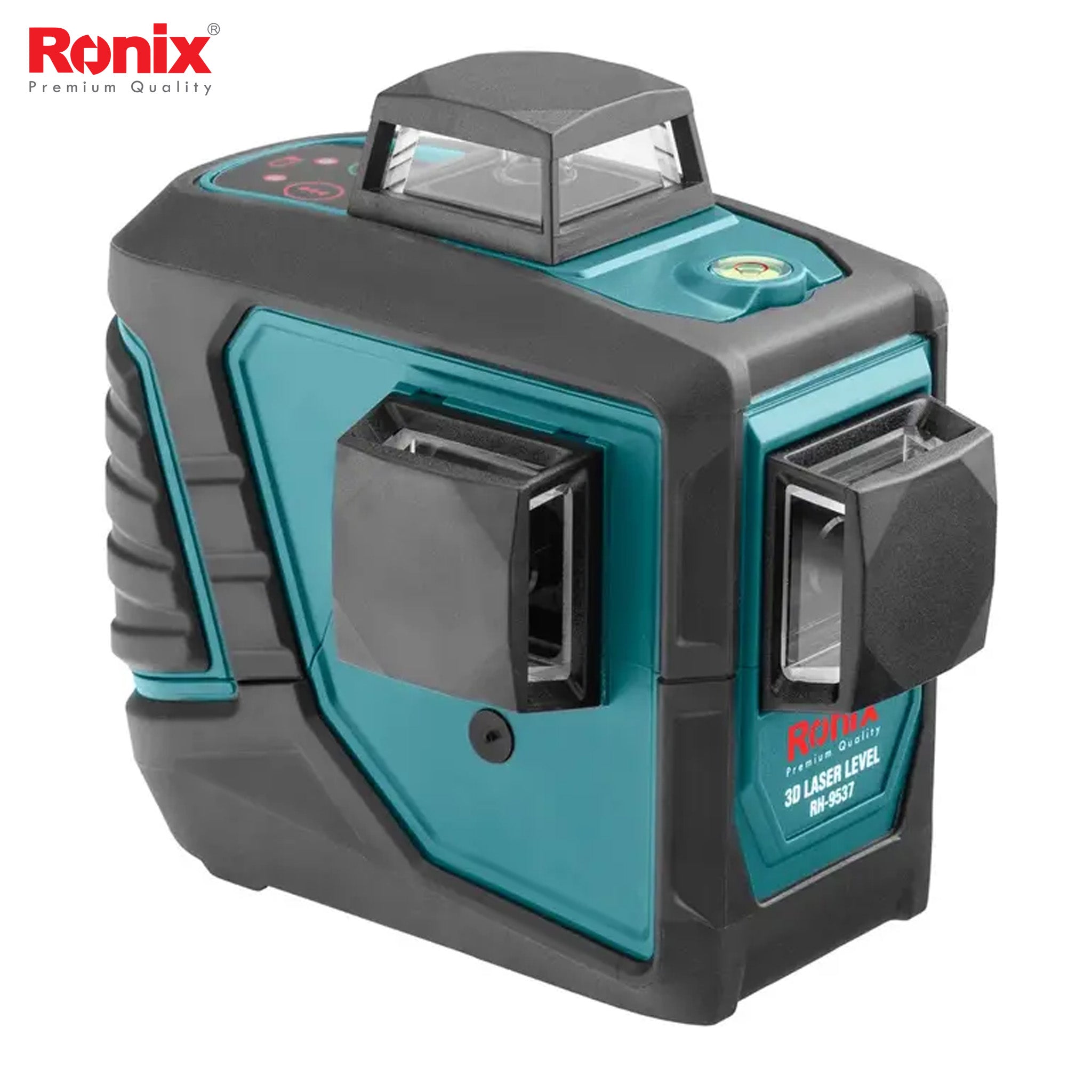

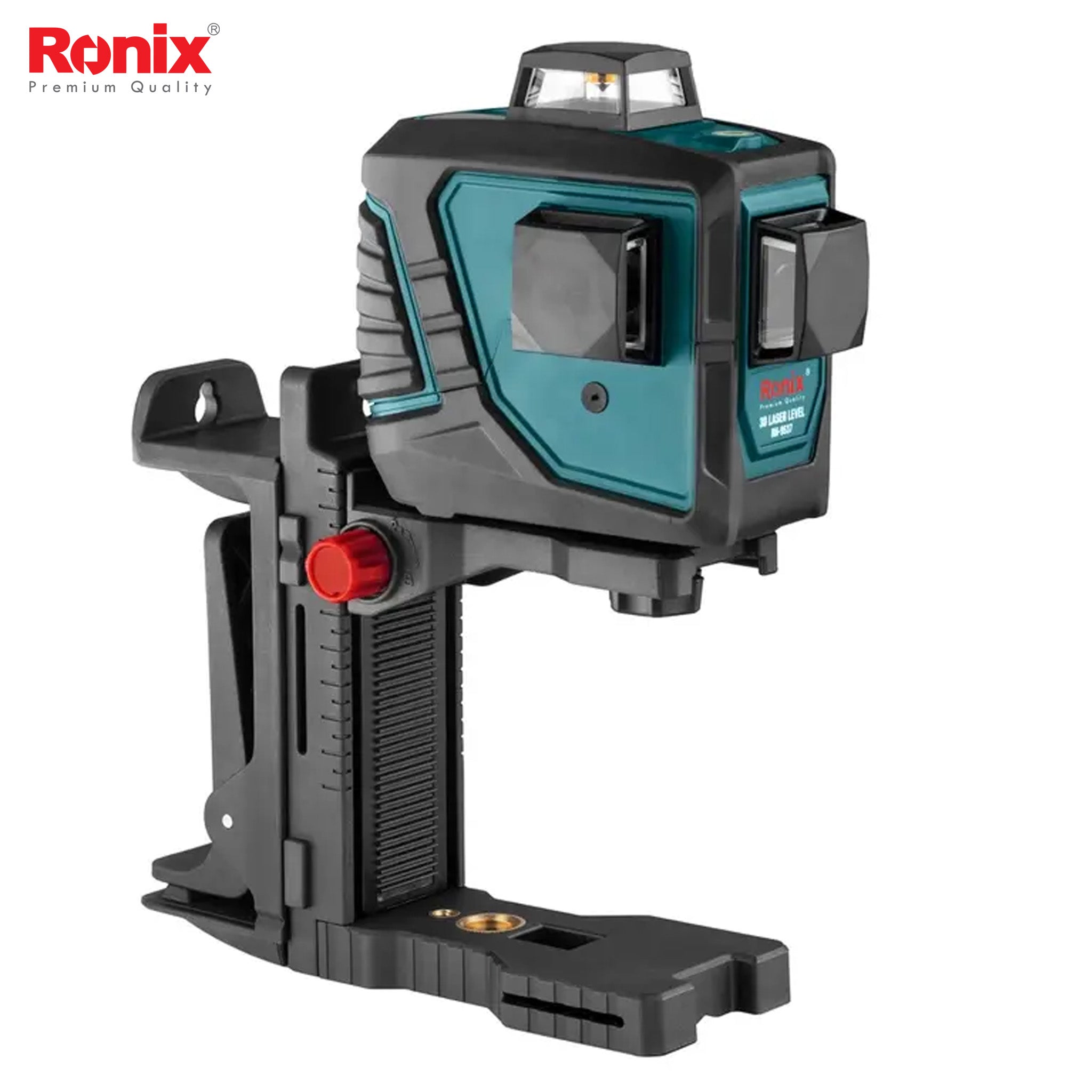

Ronix 3D Laser Level 132*85*127mm³ - RH9537G

21763
  • MVR 3,100.00
    Unit price per


Features

  • Both Indoor & Outdoor available(with detector)
  • Vertical, Horizontal & Cross green Line Modes
  • Projects two lines independently or together for a wide array
    level and/or plumb applications
  • Able to set up quickly and effortlessly to project horizontal or
    vertical lines
  • Self-leveling system compensate minor angular misalignments
    of ± 4° automatically
  • Built-in locking system to lock the compensator when in
    transportation to avoid vibration
  • Robust Over Molded Housing
  • Working with various related accessories to reach nearly all
    applications easily
  • Pendulum lock for protecting laser system during movements

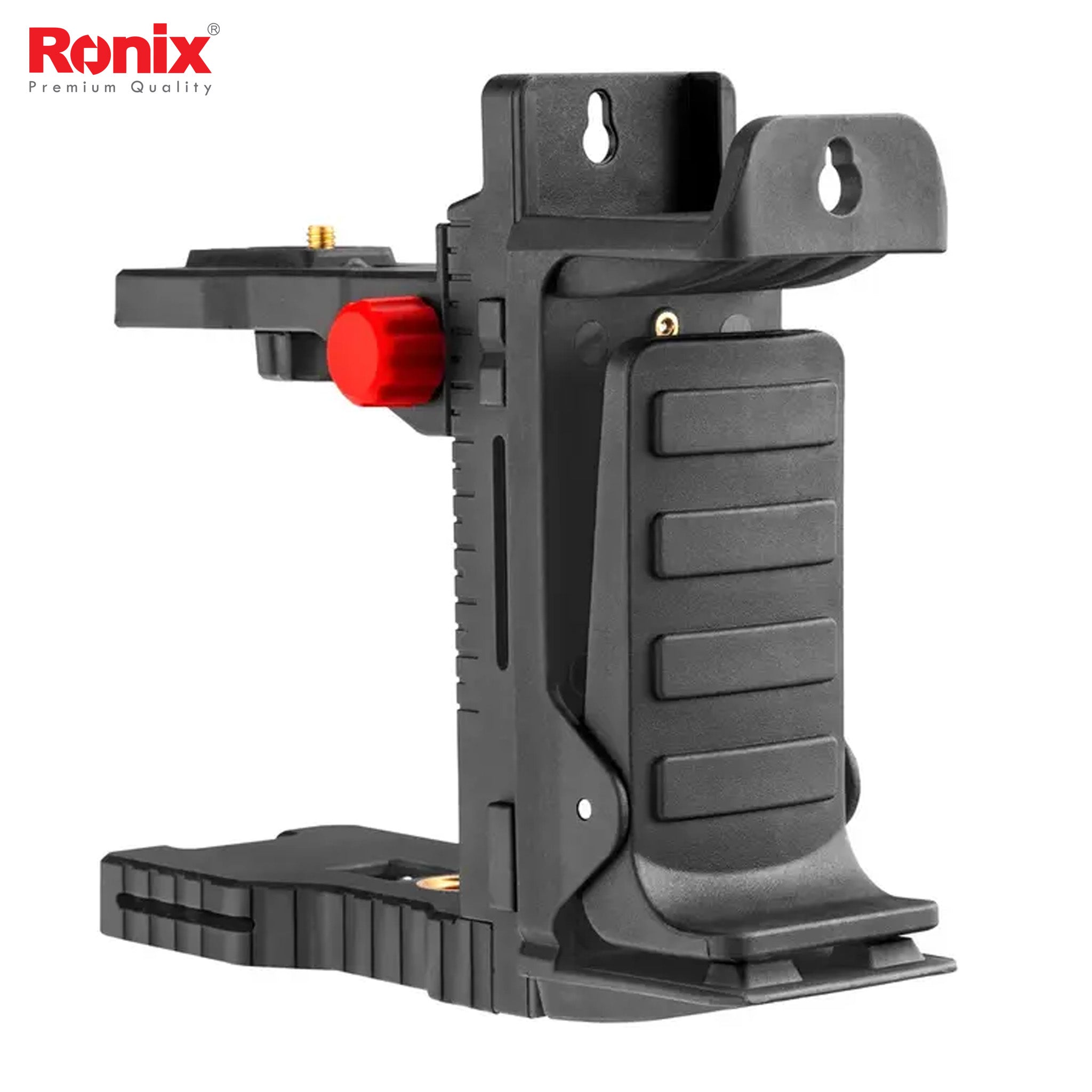

  • Equipped with magnetic pivoting base which can be easily
    adsorbed onto metal parts

Description

Most customers may wonder What is the most common measuring tool, before buying it. But first, you need to consider a few things, the most crucial of which is what application and type of work site you want to utilize it for. Because it is preferable to use some of these measuring tools indoors as opposed to outdoors, such as 3D laser levels.

Ronix RH-9537 3D Laser Level is best utilized indoors rather than outside. It may be used in both vertical and horizontal orientations. There includes a self-leveling mechanism that automatically compensates for slight angular misalignments of ±3°, making this 3D laser level as exact as possible. A locking system is put in to avoid vibration while transferring the tool to different areas.

Specification

Model RH-9537G
Accuracy of V&H line ±2mm @5m
Leveling Range ±3°
Working Range/With Detector 15m/70m with laser receiver
Tripod Thread 1/4" & 5/8''
Laser Type 660nm, laser class II - Green Color
Resistant to Water and Dust (IP54)
Operating Temperature ‐10℃to 50℃
Laser Width 3.5mm @10m
Dimensions 132x85x127 mm3
Continuous Working Time (All Diodes) ≥ 15hour
Power Supply Li-ion battery 2600 mAh 7.4V or 4*AA alkaline battery pack
Net Weight 675GR
Supplied in BMC

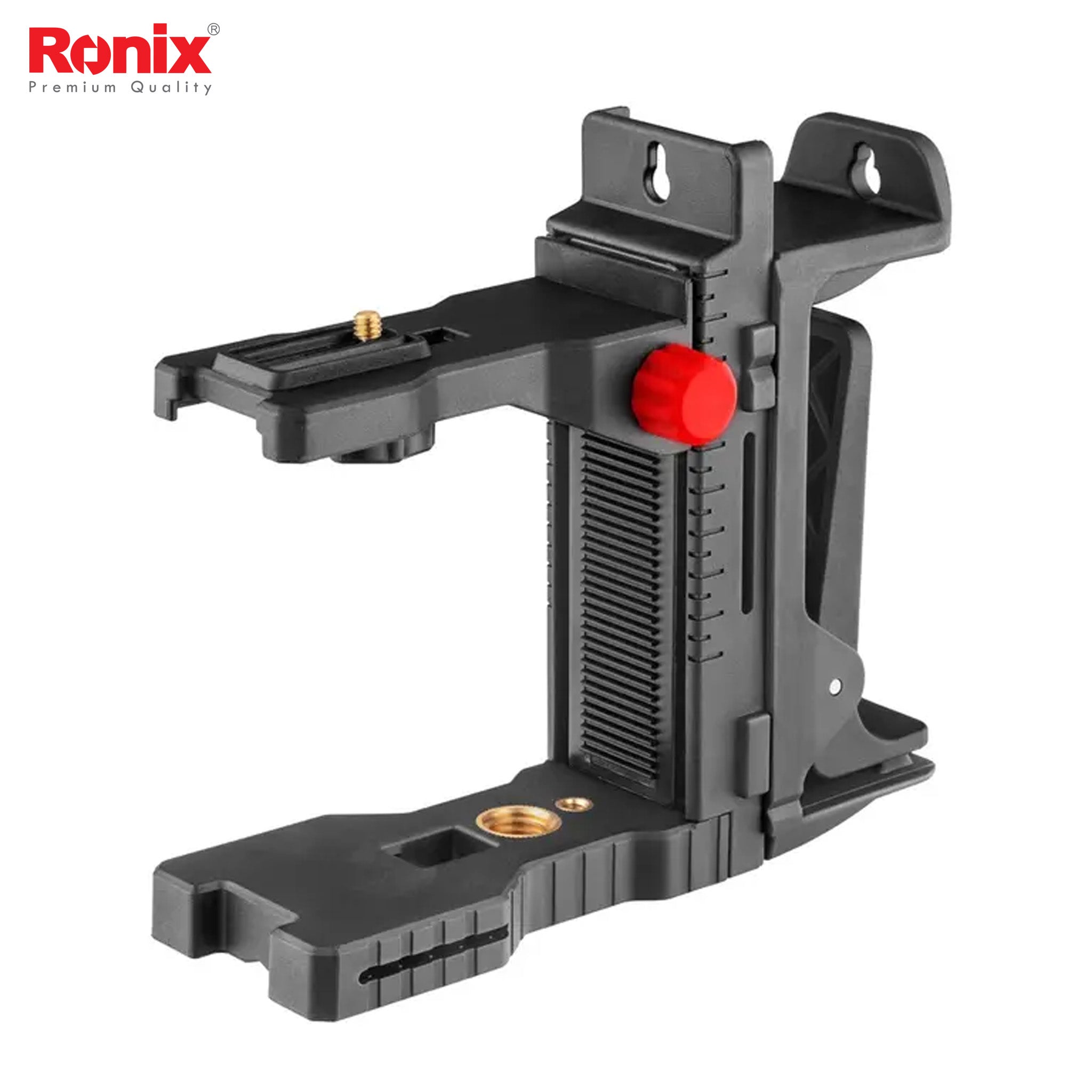

Includes li-ion battery. -Alkaline battery -Charge box -Charger -Laser plate -Goggle. - bracket.


3D Laser Level- 132, 85, 127 mm3 Green Beam | 🧰 Ronix Tools

Ronix RH-9537 3D Laser Level is a perfect leveling tool to fulfill users’ needs, primarily for indoor applications. It comes in a BMC case to help you with transportation and maintenance.

Why do you need a 360˚ laser level?

Before using a laser level, you need to learn about its characteristics and features. Laser levels are produced in different types and brands, and each one offers its usage, features, and advantages to the users. In the following, learn more about Ronix RH-9537 features and specifications.

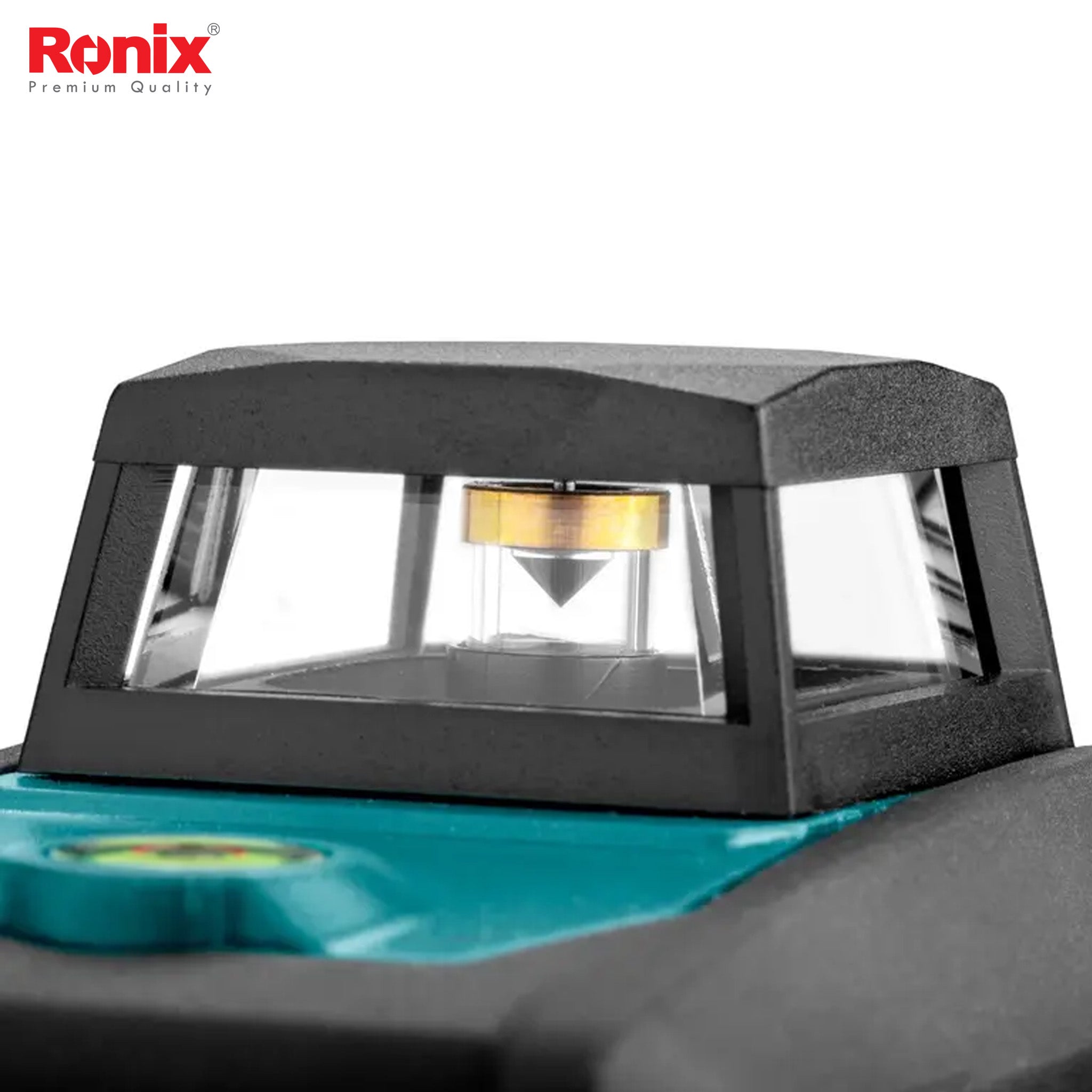

Laser Technology:

Rh-9537 is manufactured with high laser leveling technology, and the laser type used in this product is a 660nm laser class II. Its laser width is also 3.5 mm at 10m.

Measuring Accuracy:

The Working Range of this self-leveling laser level is 15m/70m with the laser receiver, and the accuracy of vertical and horizontal lines is ± 2mm at 5m. It provides three precise 360-degree full plane coverage in both horizontal and vertical operations.


Operating Temperature:

The operating temperature of this laser level is -10˚C to 50˚C.

Self-Leveling System:

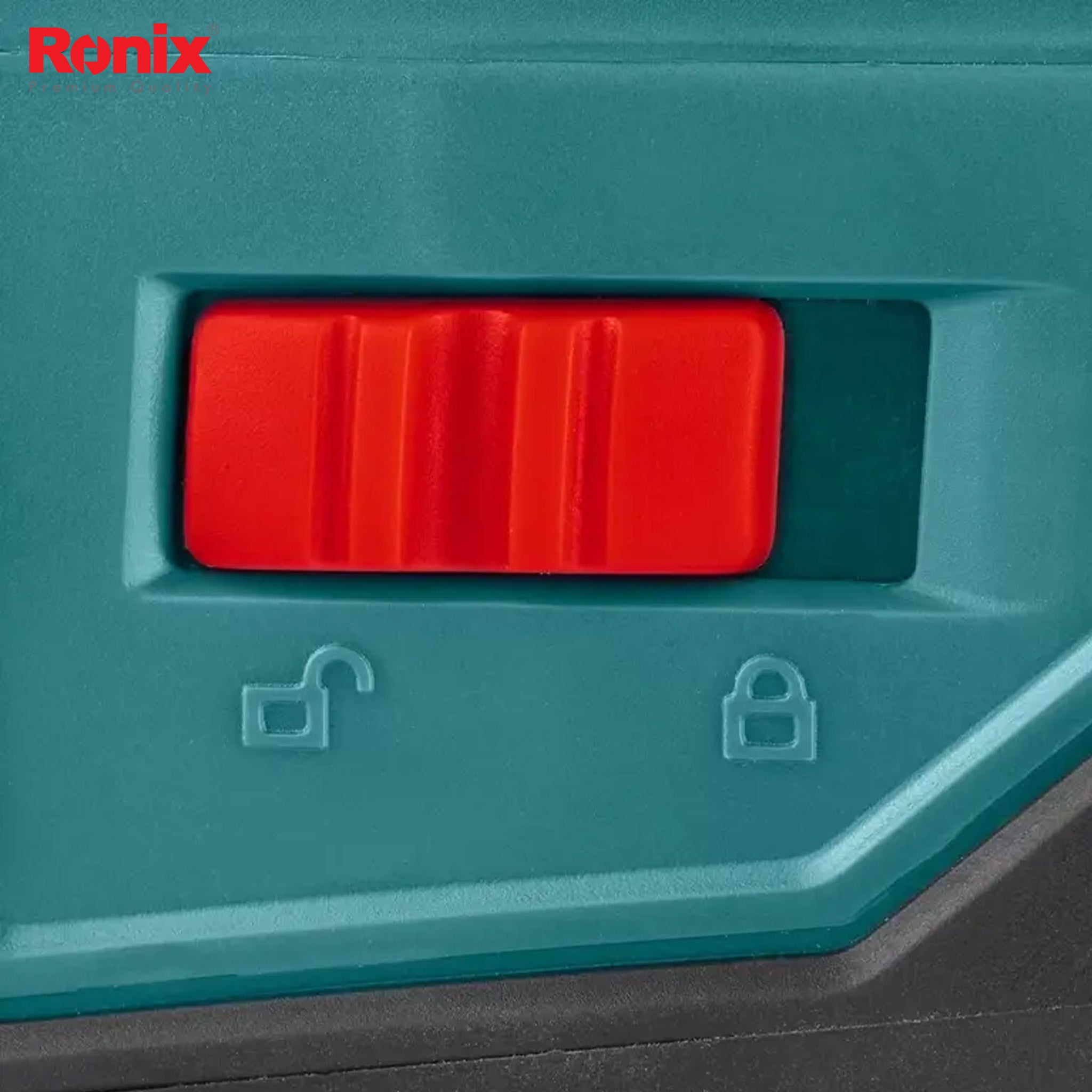

The self-leveling system compensates for minor angular misalignments of ± 3° automatically. To turn the self-leveling system off and work on tilt lines without vibration or alarm interference, you can use the side lock switch and disable the compensating system.

Pendulum Locking System

Its secure transport lock protects the pendulum when the unit is switched off. The laser lines can be locked when in use, and can play the role of a ruler.

Body:

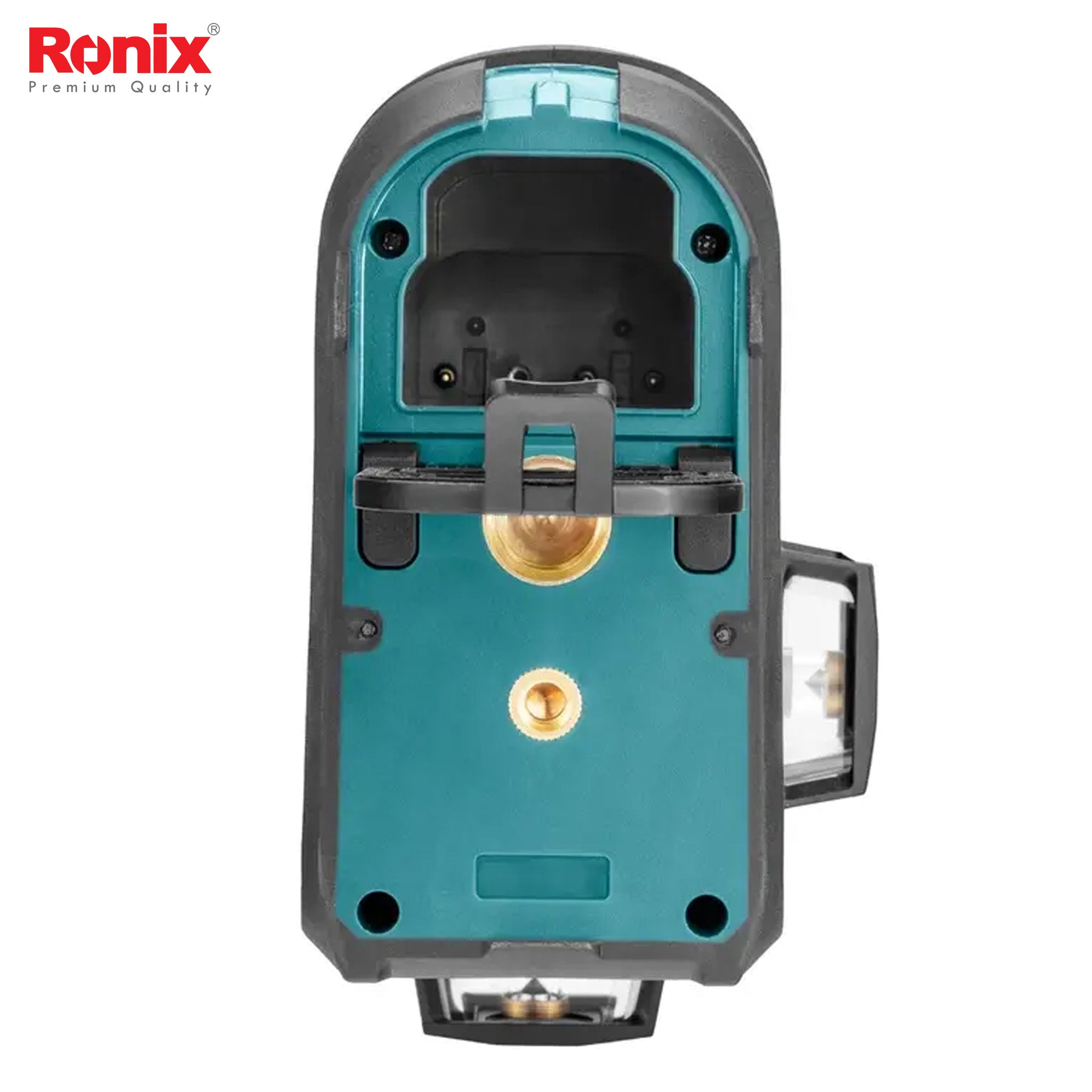

The ergonomic anti-shock body design of the RH-9537 with 675gr of weight and robust over‐molded housing removes the risk of damage in case of falling or stroke. The dimensions of this tool’s body are 132x85x127 mm3. Its IP54 water and dust-proof standard ensure years of dependable operation. This laser level has two tripod threads with the size of 1/4" & 5/8''.

Quick Set-Up System:

This laser level can be set up quickly and effortlessly to project horizontal plane or vertical lines.

Base:

It is equipped with a freestanding base with a rubber edge to stand more stably.

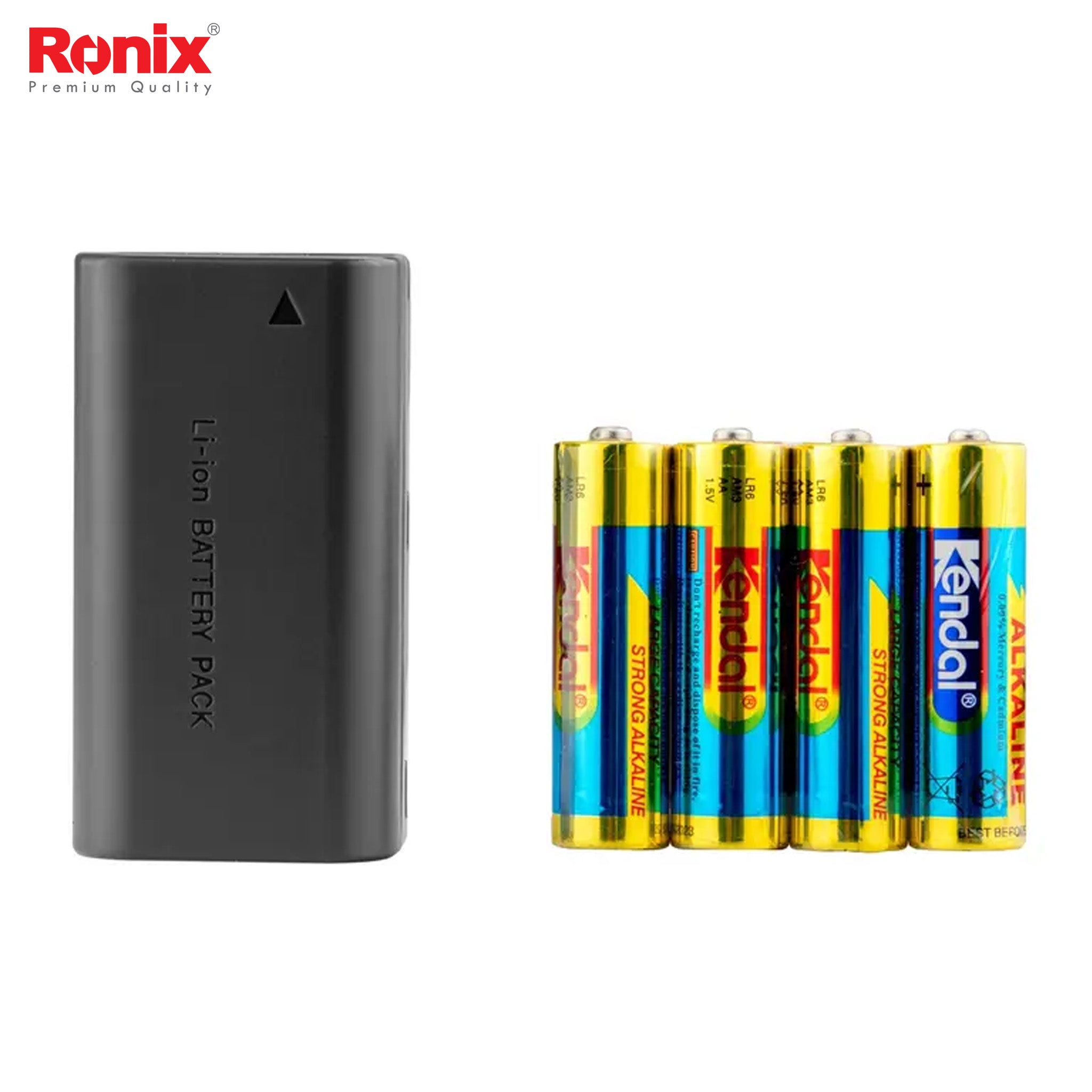

Battery:

This laser leveling tool has a Li-ion battery 7.4V/2600mAh or 4X AA alkaline battery pack that provides≥ 15 hours of continuous work with all diodes.

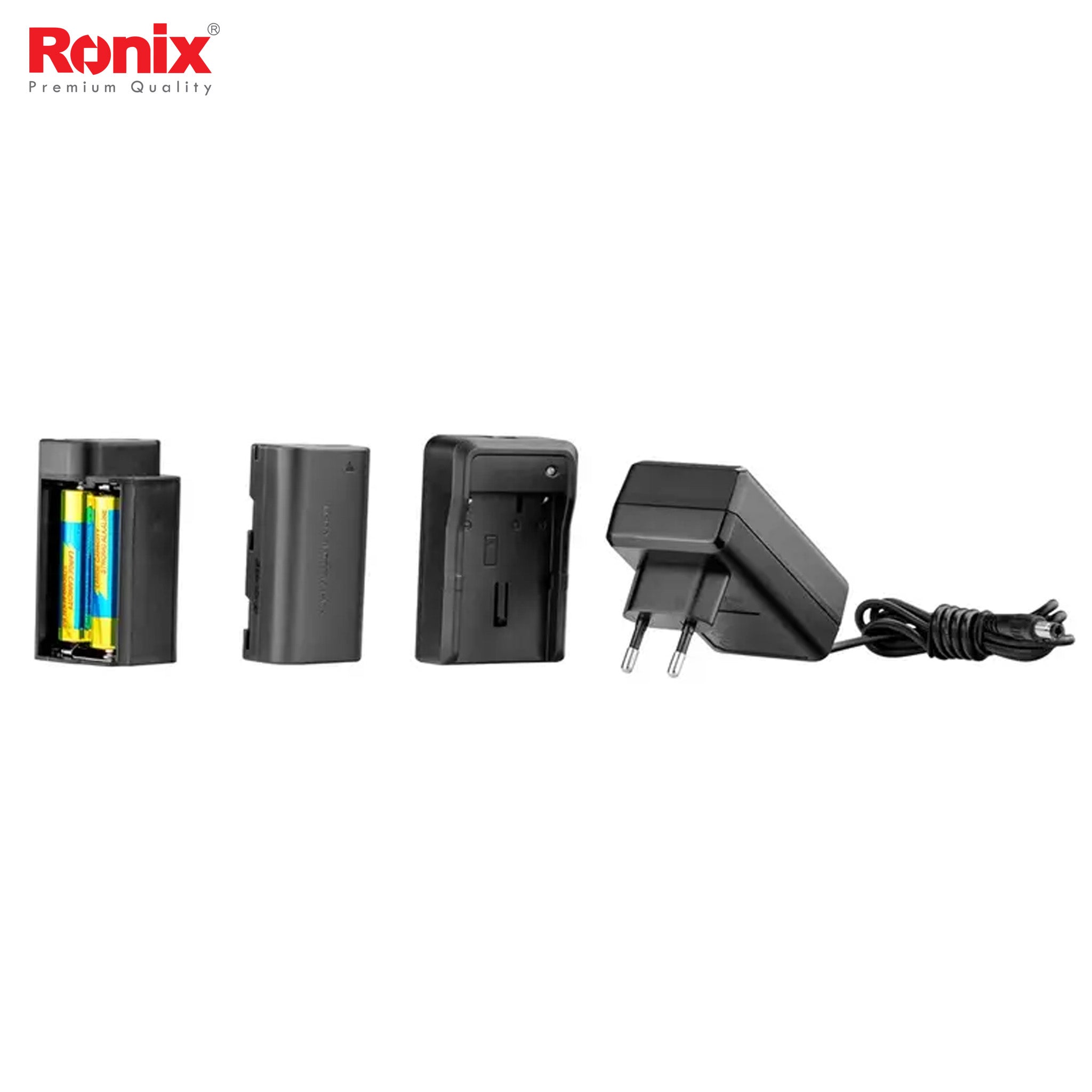

Packaging and Accessories:

Ronix RH-9537 is supplied in a BMC case and includes accessories like a li-ion battery, 4X Alkaline batteries, a charge box, charge, laser plate, goggles, and bracket.
