Ronix Cutting Torch-Zinser model - RH4503
21695Features
- Forged Brass Body for Maximum Strength ,brass head Zinc alloy die cast handle.
- Durable Brass Nozzles Heavy Duty
- Brass coupling nut & double o-ring tapered seal gives quick gas-tight seal with a tightening wrench.
- Cutting torch kit includes Z-P,S1,S2,S3,S4 cutting tips, it can cut up to 100MM steel, also you can buy some cutting tips, such as Z-P,S1,S2,S3,S4, which can cut up to 100MM steel.
- Cutting torch ready for two gas options; Oxy and Propane.
- This German-type cutting torch is made of brass hot forging
- This portable hand-cut torch has a built-in gas jet structure to adjust the gas intensity that controls your flame size.
- Its LENGTH 435MM torch with 90 degree head angle allows for easy use and versatility in tight spaces.
Description
If you’re a welder, a machinist, an automotive technician, an artesian metalworker, or in any other industry that requires accurate and reliable metal cutting, a cutting torch is a must-have tool. The Ronix RH-4503 cutting torch, with its German design and many features is here to be the help you didn’t know you needed!
Specifications
| Model | RH-4503 |
| Style | German-style |
| Tip Type | （Z-P,S1,S2,S3,S4) |
| tips material | BRASS+COPPER |
| Body Material | BRASS |
| tips dimention | "outer thread :M21*1.5 INNER THRESD :M8*1.25 " |
| Dimension | 435*160*56MM |
| Cutting Depth | 100MM |
| Weight | 1.95Kg |
| Includes | "Cutting Nozzle ( z-p, S1, S2, S3, S4) Cutting Carriage & Circulate Guide&Wrench" |
| Supplied in | color box |
Detailed Description
RH-4503, Here to Make Torching Fun
The Ronix RH-4503 is a great option if you’re looking for a reliable cutting torch, keep reading to discover everything about it.

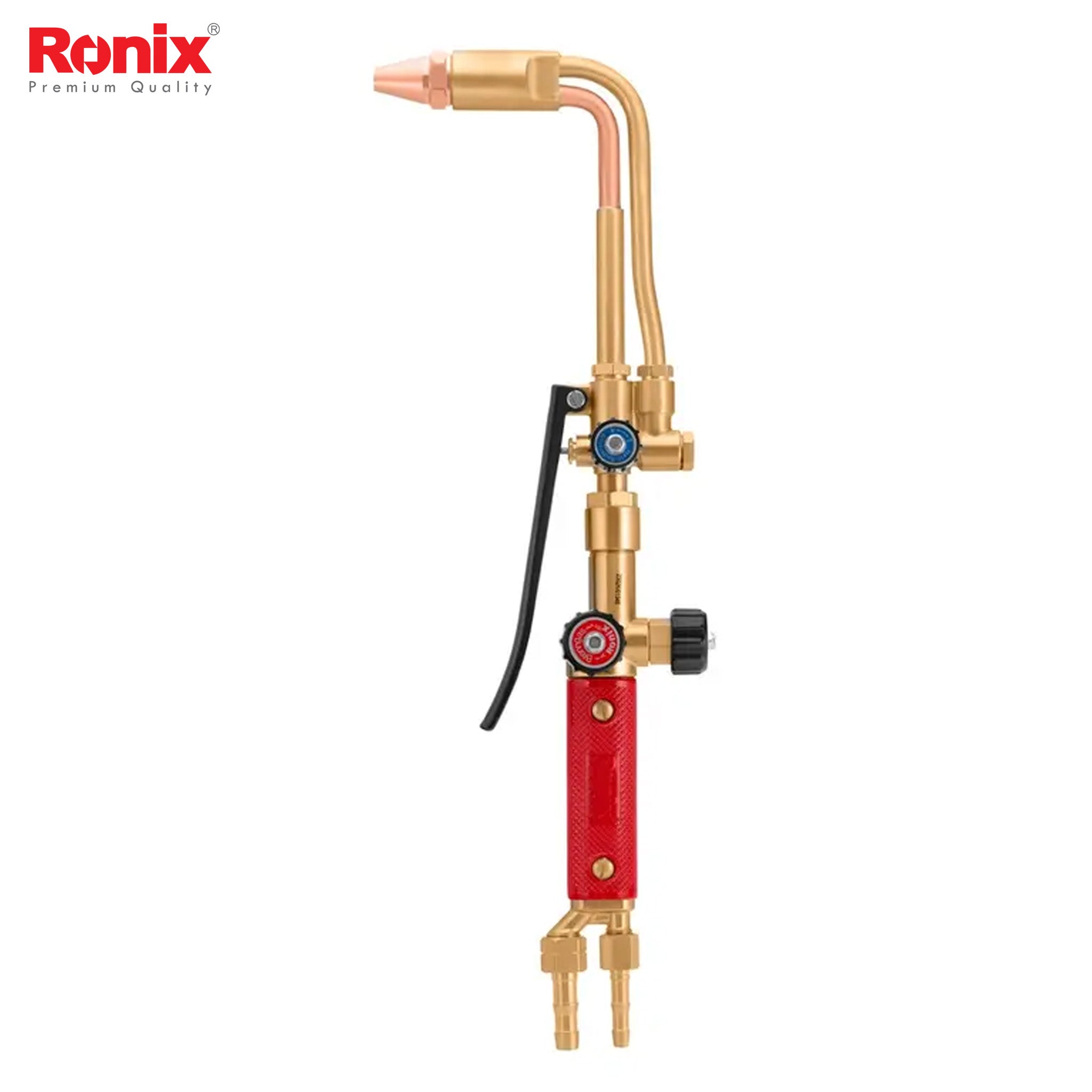

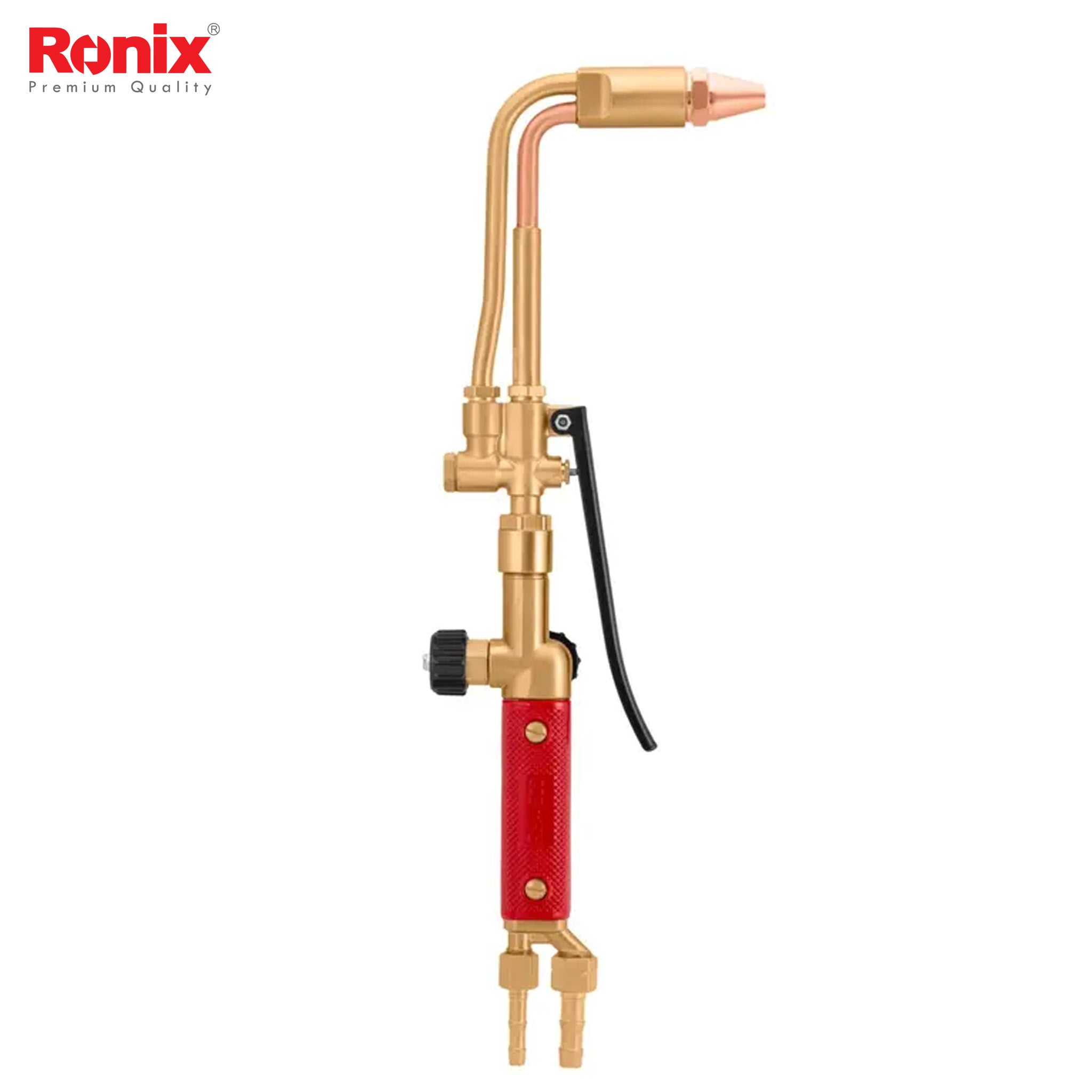

Body and Design
This German-style cutting torch features a robust and compact design, measuring 435 mm in length and weighing 1.95 kg, making it well-suited for industrial applications. Its dimensions (43*51*60*56 mm) ensure a balanced and ergonomic grip for extended use.
The 90-degree head angle assures great mobility, allowing users to access tight spaces easily, adding to its versatility in various cutting tasks.
Material

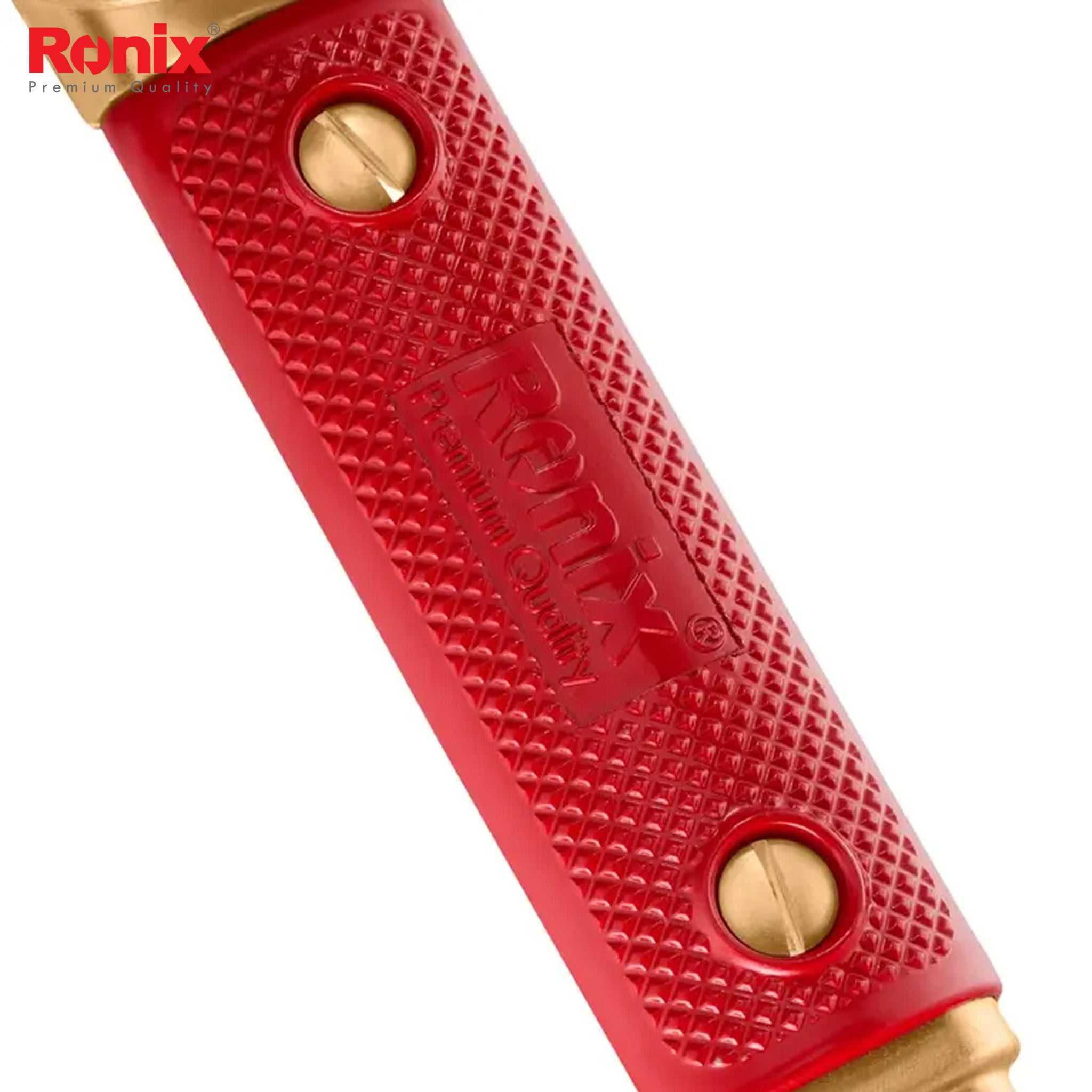

This German-style cutting torch is built with durability and performance in mind, using high-strength hot-forged brass for its main body. The brass head and durable brass nozzles are designed to withstand heavy-duty use, while the zinc alloy die-cast handle provides a comfortable grip and enhanced durability. A heavy-duty brass coupling nut, equipped with a double O-ring tapered seal, ensures a quick, gas-tight seal for secure and efficient operation. This combination of materials offers both longevity and reliability, ideal for demanding industrial environments.

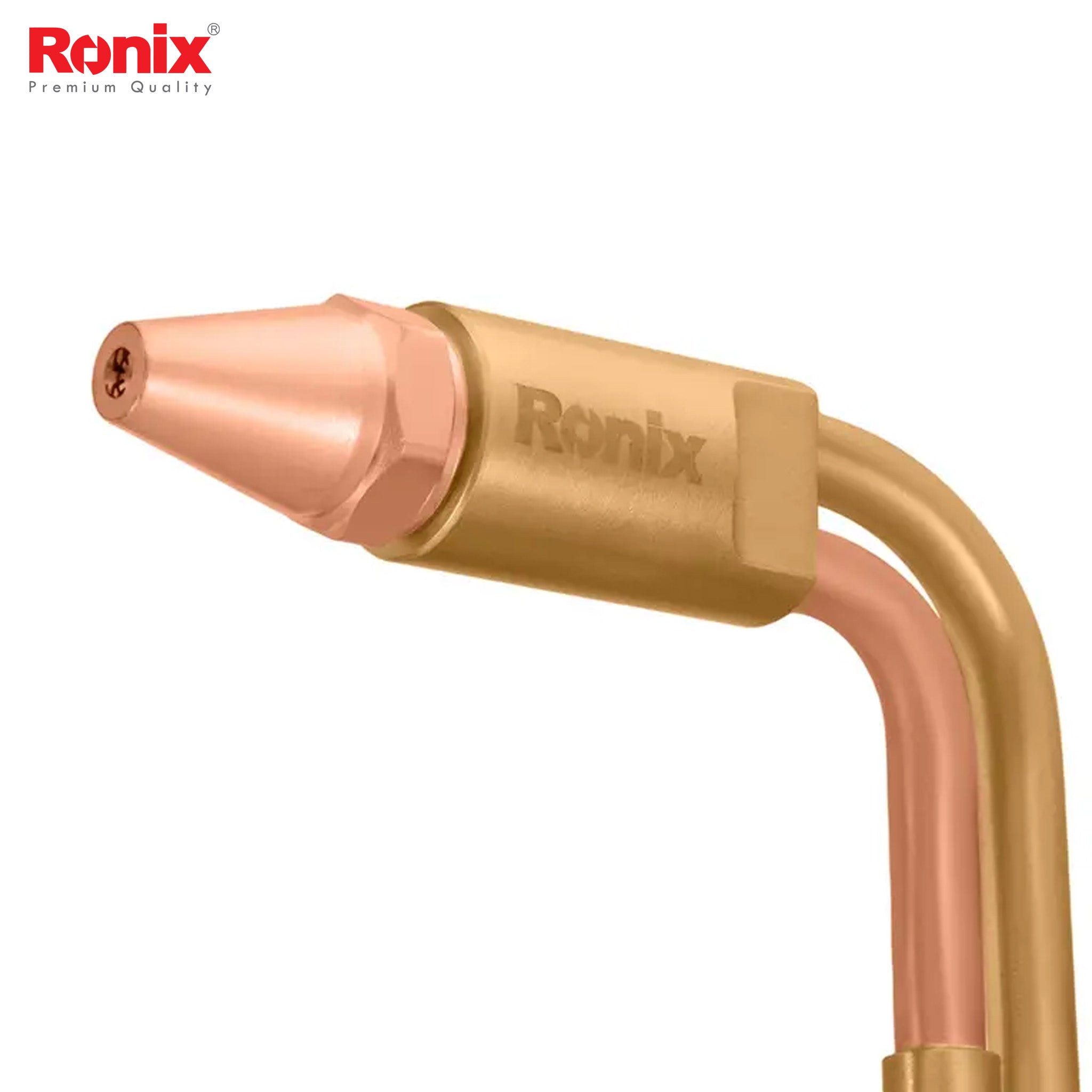

Tips

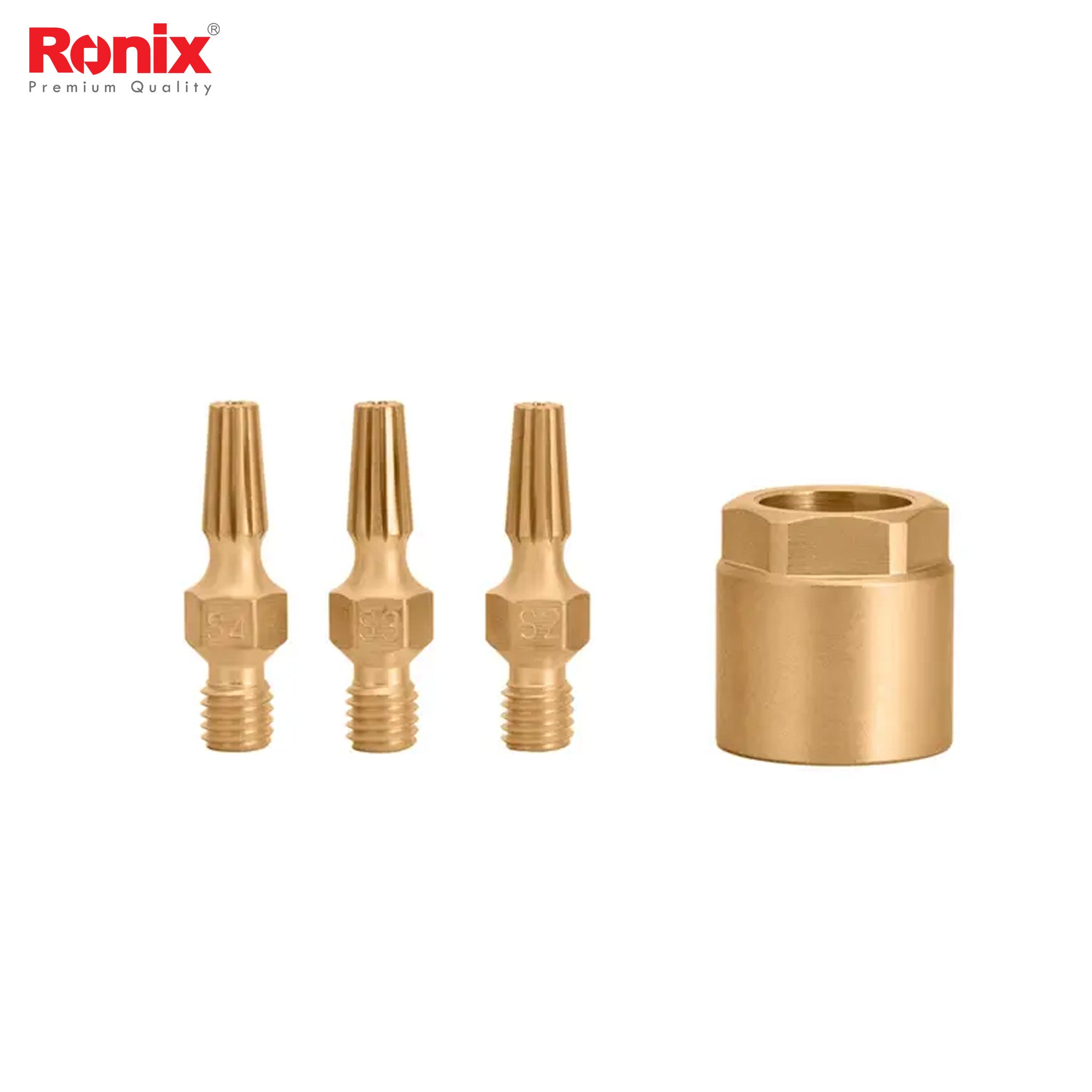

The Ronix RH-4503 cutting torch comes with versatile cutting tips, including types Z-P, S1, S2, S3, and S4, allowing it to tackle a wide range of metal thicknesses. Constructed from a durable blend of brass and copper, these tips are engineered for efficient heat resistance and extended lifespan. With an outer thread dimension of M211.5 and an inner thread of M81.25, these tips ensure a secure fit and optimal gas flow. This robust tip selection allows the torch to cut through steel up to 100 mm thick, providing excellent performance and adaptability for various cutting tasks.

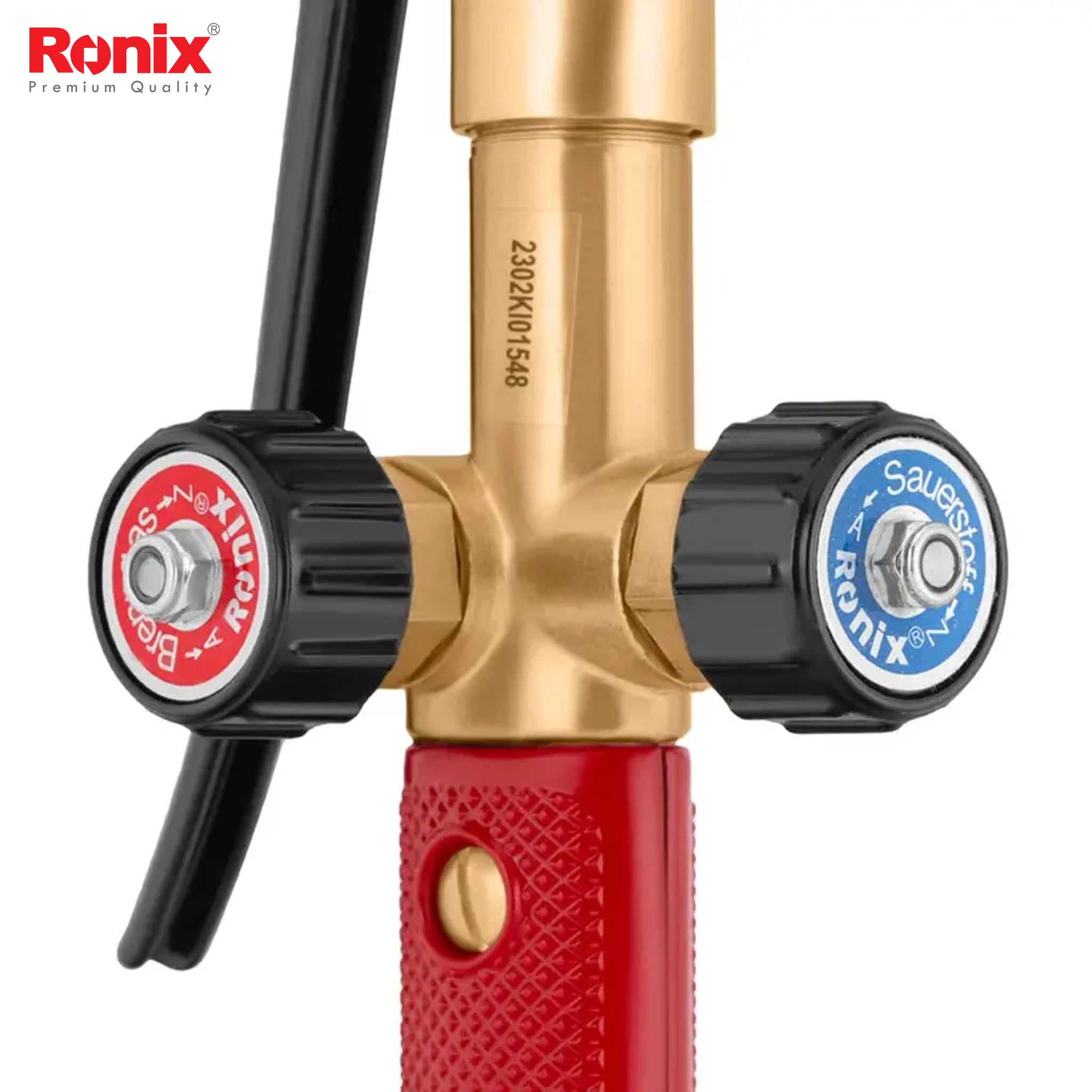

Gas Compatibility and Flame Control
This cutting torch supports both Oxy and Propane gas options, adding flexibility for different applications. Equipped with a built-in gas jet structure, it allows precise control over gas intensity to easily adjust the flame size, enhancing efficiency and precision in metal cutting tasks.
Accessories and Packaging
The Ronix RH-4503 comes with cutting nozzles (Z-P, S1, S2, S3, S4), a cutting carriage, a circular guide, and a tightening wrench.
This product is supplied in a color box.
