Ronix DC ARC Welding Inverter 400A - RH4640
21699Description
Our 400-Amp DC Arc Welding Inverter is equipped with IGBT technology. This technology significantly increases welding quality, conserves energy, and increases efficiency. Ronix RH-4640 comes with short-circuit current protection and provides easier ignition and fewer sparks as well as featuring exceptional arc strike performance at rust surfaces.
The protective features of this arc welding inverter do not stop here. We have included many more similar features to avoid over-the-limit voltages and currents as well as protecting against overheating and overload protection. These features provide the user with an increased level of safety and they give the welding machine more longevity.

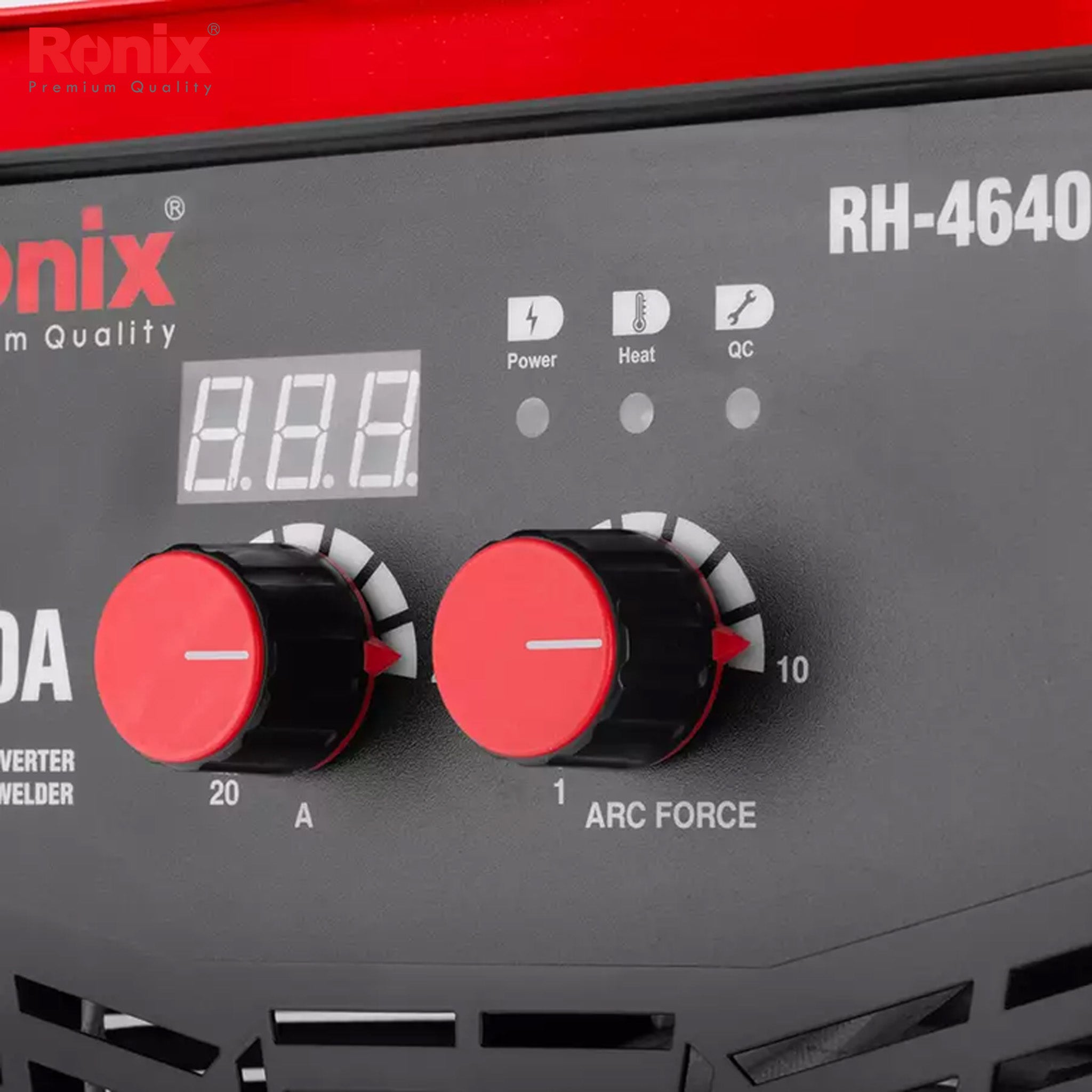

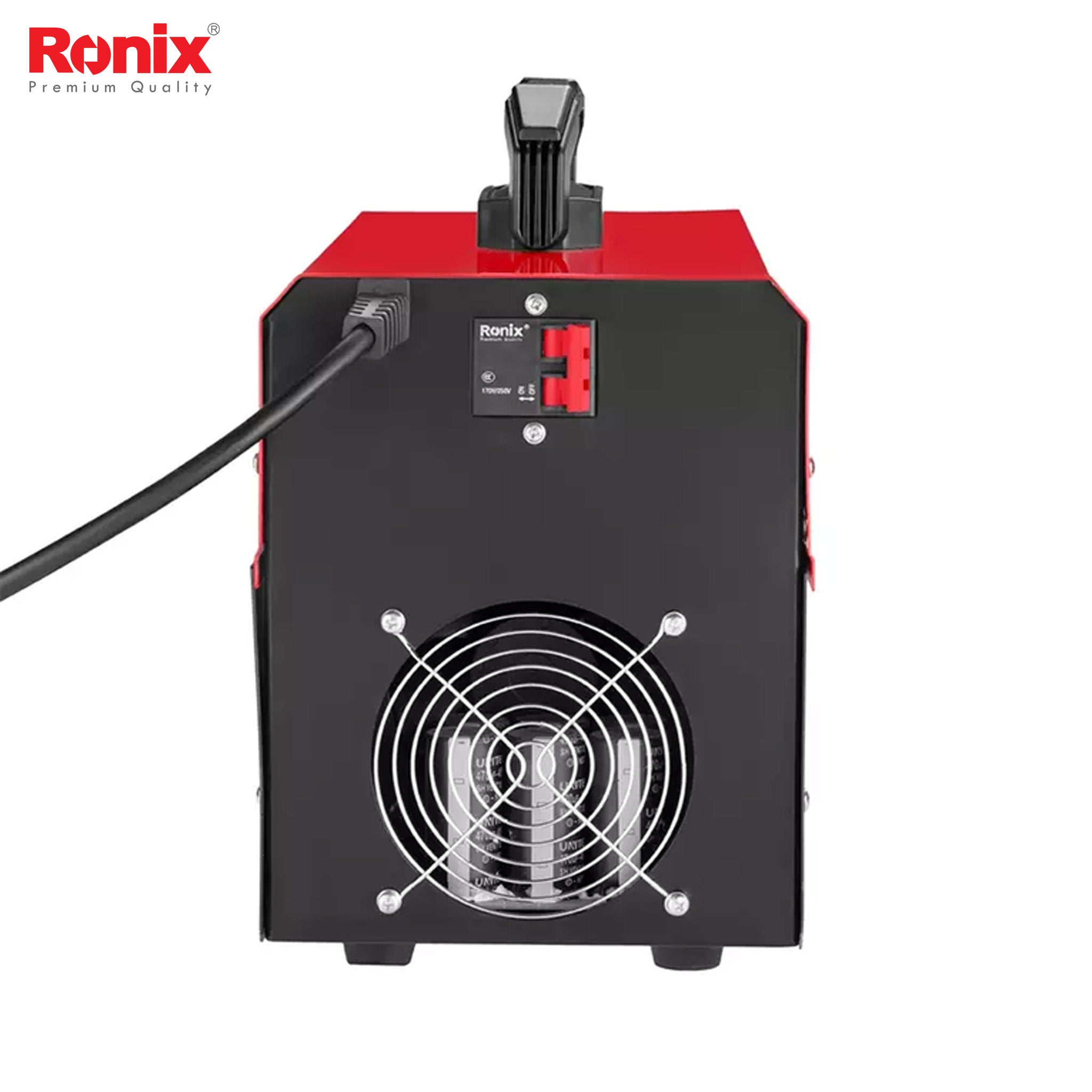

Our welding machines come with features to enhance the welding experience. They come with a digital display for highly accurate welding and a professional cooling system to increase efficiency by letting users weld continuously for longer durations.
Specifications
| Model | RH-4640 |
| Input voltage | 170V-250V |
| No-Load voltage | 35-50V |
| Out-put Current Range | 20-400A |
| Rated Out-put Voltage | 20.8-30V |
| Max Input Power Capacity | 12KVA |
| Max Input Current | 55A |
| Power Factor | 0.73 |
| Duty-cycle (25°C) | 100% |
| Insulation Class | F |
| Protection Class | IP21S |
| Electrode Diameter | 1.6-5.0mm |
| Supplied in | honey-con box |

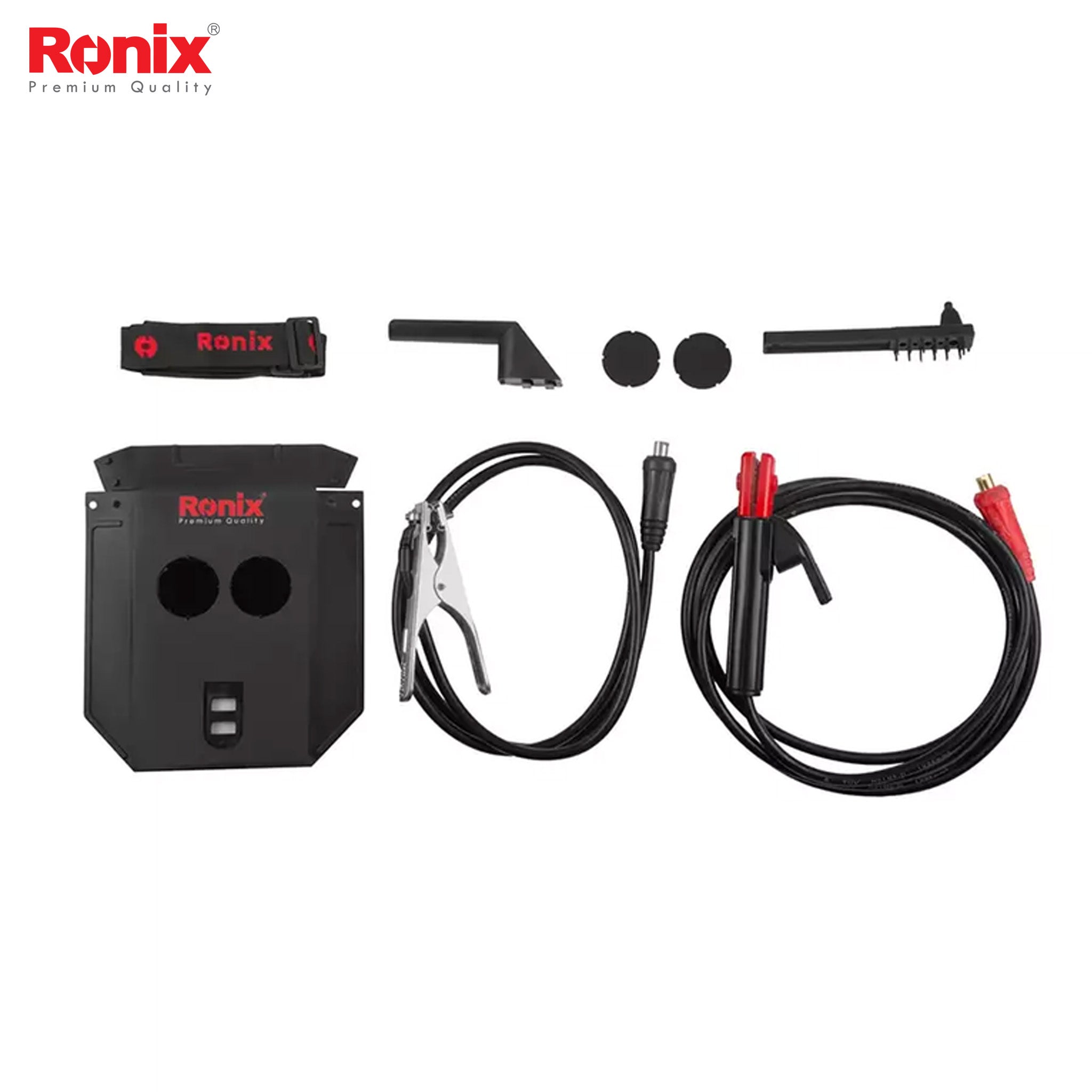

| Accessories | 3m*16mm CCC cable with 300A holder 1pc, 2m*16mm CCC cable with 300A earth clamp 1pc, mask 1pc, brush 1pc, Strap 1pc |
Ronix RH-4640 employs IGBT Technology which provides better welding quality and penetration. This technology also significantly reduces energy consumption and increases efficiency.
