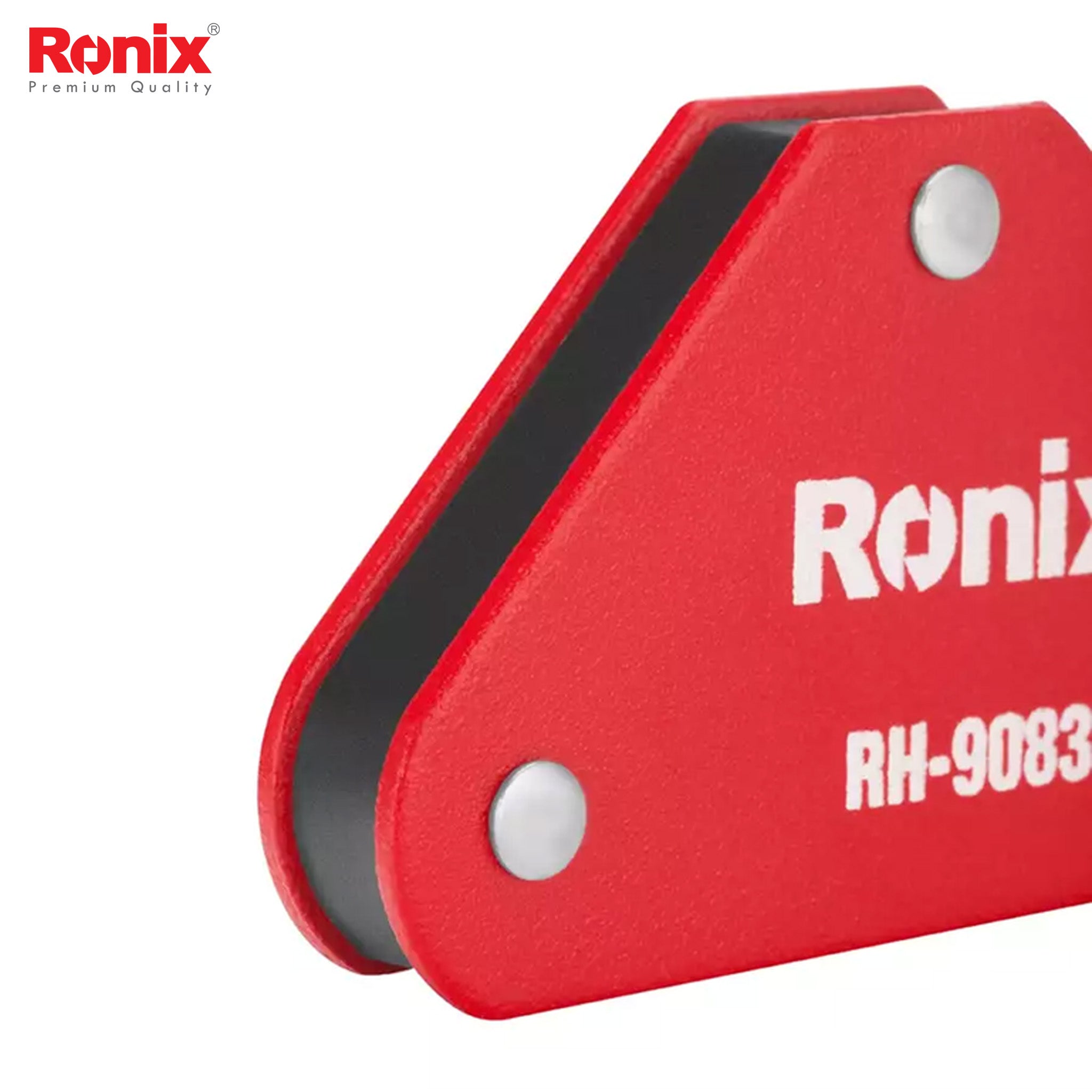

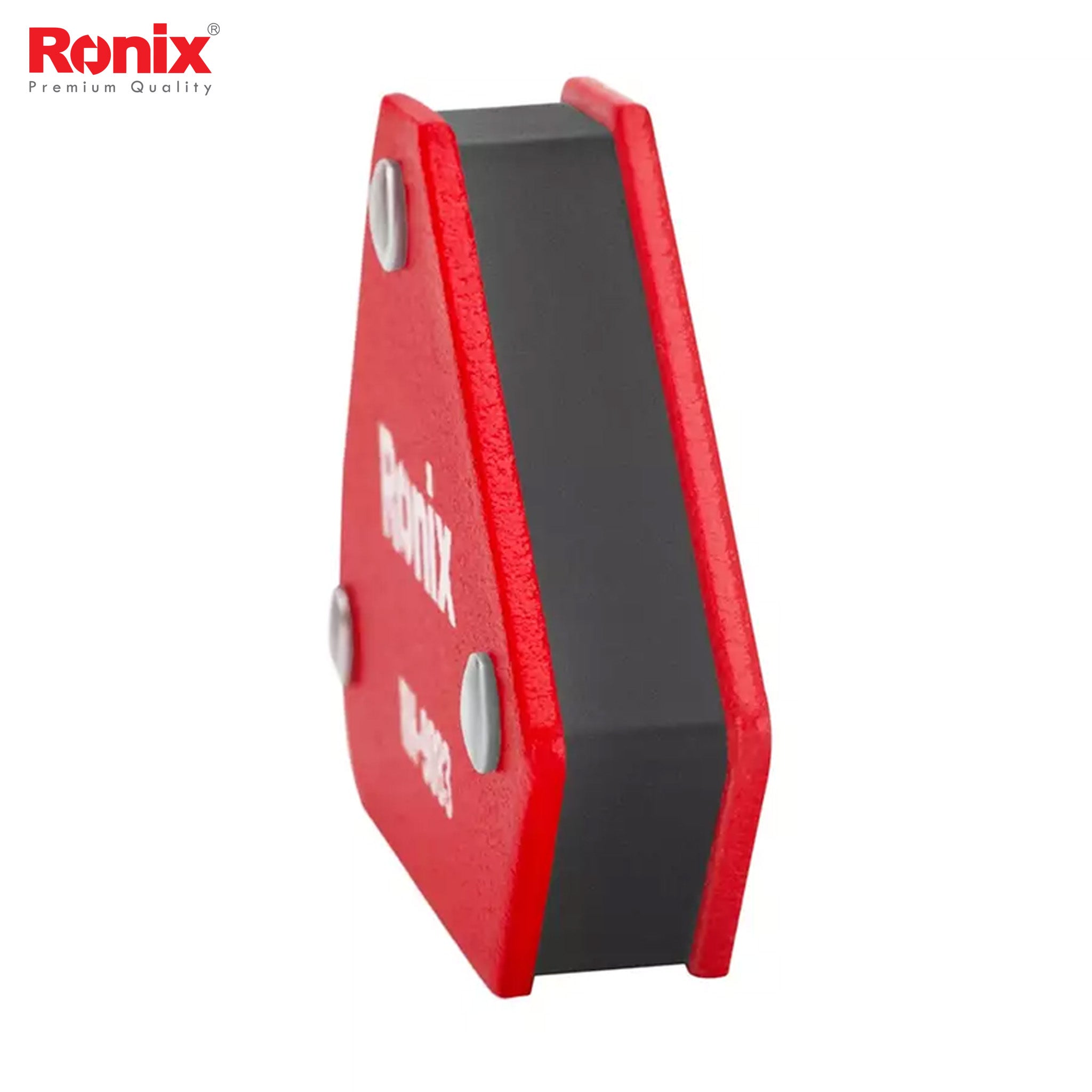

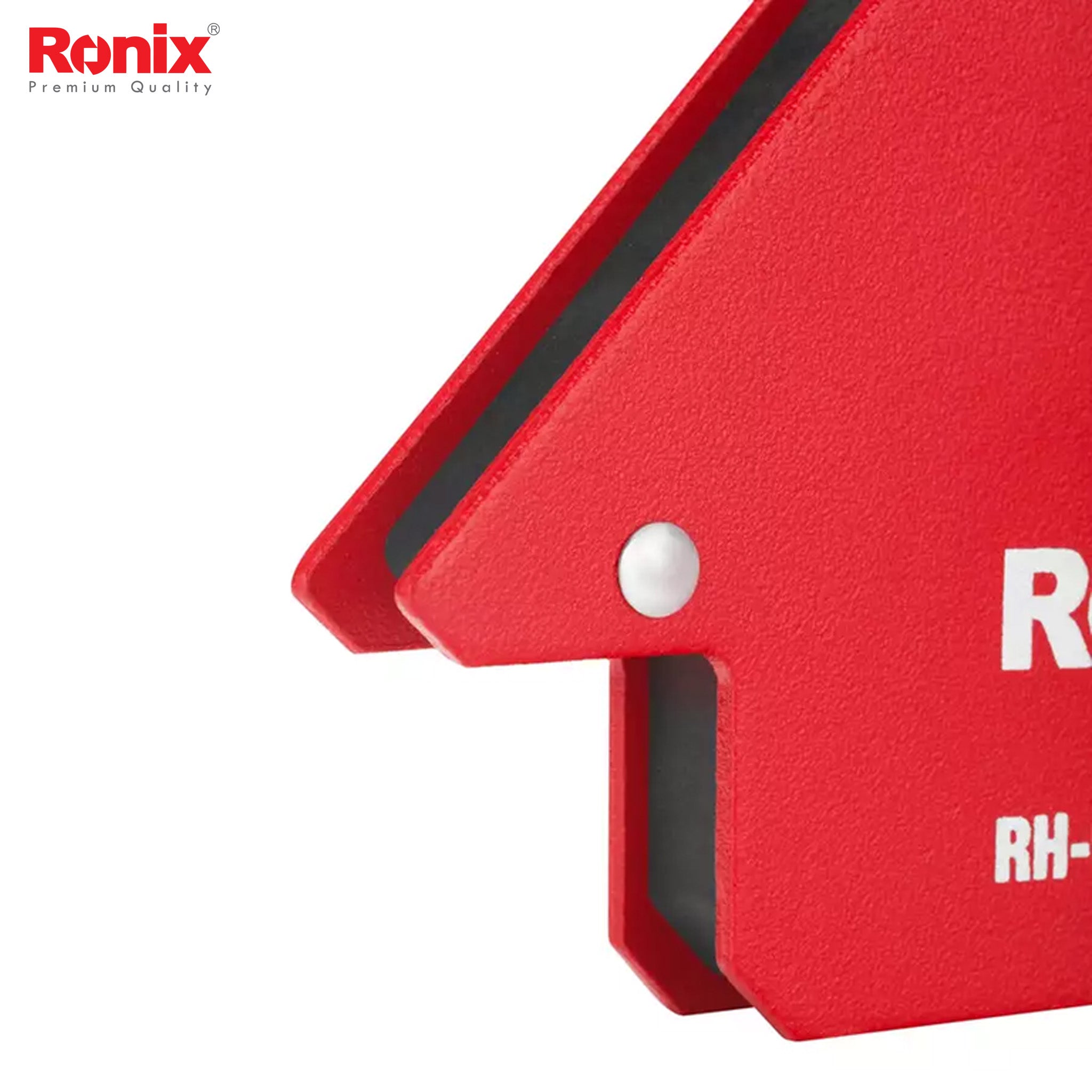

Ronix Magnetic Welding Holder Set - RH9083
21753Description
The Ronix RH-9083 Welding Magnet Set includes two 3-inch magnets with a 12 kg weight limit, two hex magnets with an 8 kg pull force, and two mini magnets with a 4 kg capacity, all designed to securely hold metal workpieces during welding or soldering.
Made from durable A3 steel with rust-resistant magnets, this set offers versatile holding angles from 45° to 180°. Compact and efficient, it weighs only 1.45 kg, making it easy to carry and perfect for a variety of metalworking tasks.
Specifications
| Model | RH-9083 |
| 3Inch Magnet Quantity | 2PCS |
| hex Magnet Quantity | 2PCS |
| Mini Magnet Quantity | 2PCS |
| 3Inch Magnet thickness | 15mm |
| hex Magnet thickness | 14.5mm |
| Mini Magnet thickness | 12mm |
| 3Inch Magnet dimension | A:75 mm B:75mm C:120mm |
| Mini Magnet dimension | A:52 mm B:73 mm C:60 mm |
| hex Magnet dimension | A:95 mm B:65 mm C:45 mm |
| Material | A3 steel,Y30-BH ferrite magnet |
| 3Inch Magnet Angles | 45°90°135°180°degree |
| hex Magnet Angles | 30°45°60°75°90°180°degree |
| Mini Magnet Angles | 45°90°180°degree |
| 3Inch Magnet Pull Force | 12Kg |
| hex Magnet Pull Force | 8Kg |
| Mini Magnet Pull Force | 4Kg |
| 3Inch Magnet weight | 0.34Kg |
| Mini Magnet weight | 0.1Kg |
| hex Magnet weight | 0.28Kg |
| Total weight | 1.45Kg |
| Supplied in | double blister |
Detailed Description
Discover the ins and outs of the RH-9083 magnetic welding holder set, here:
What’s Inside?

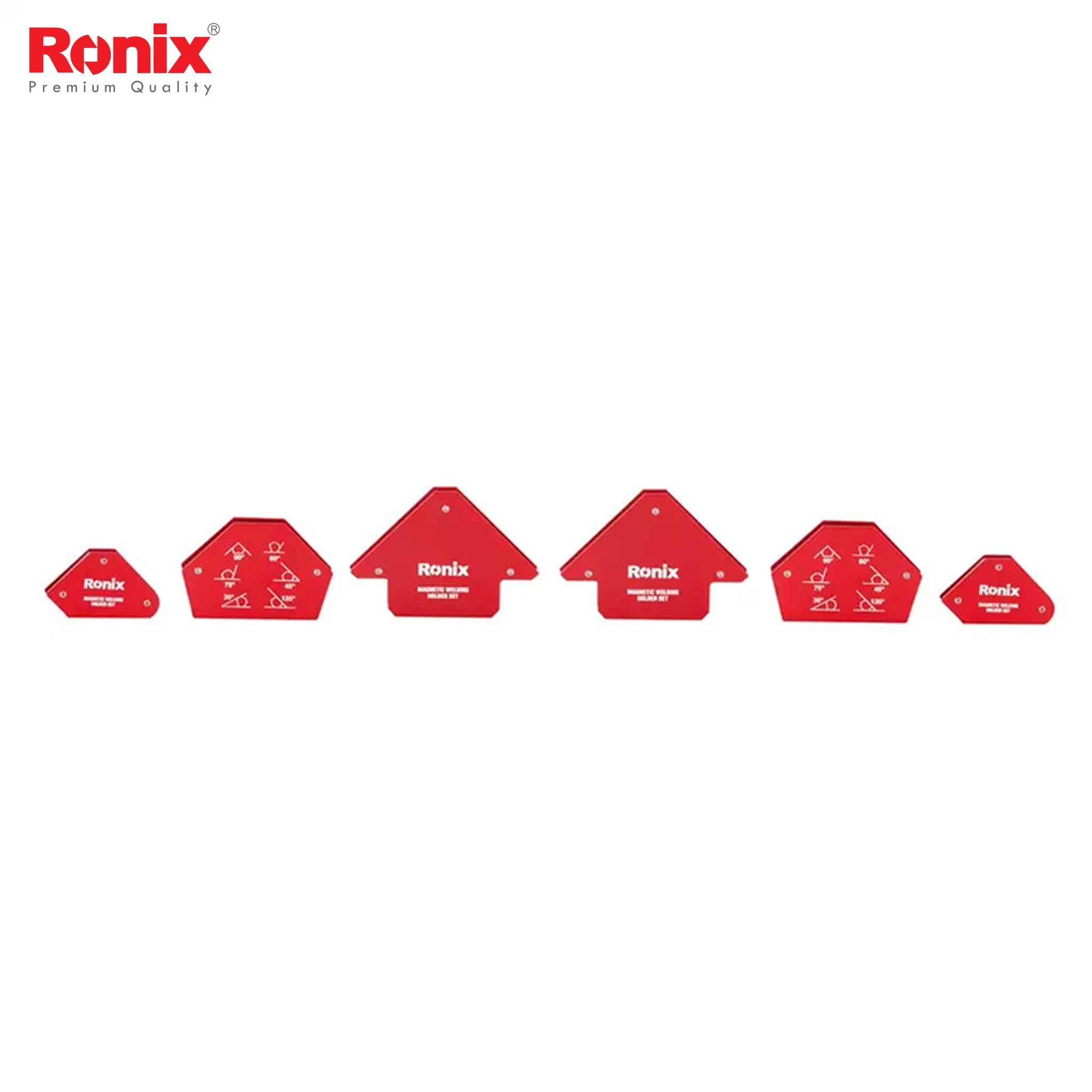

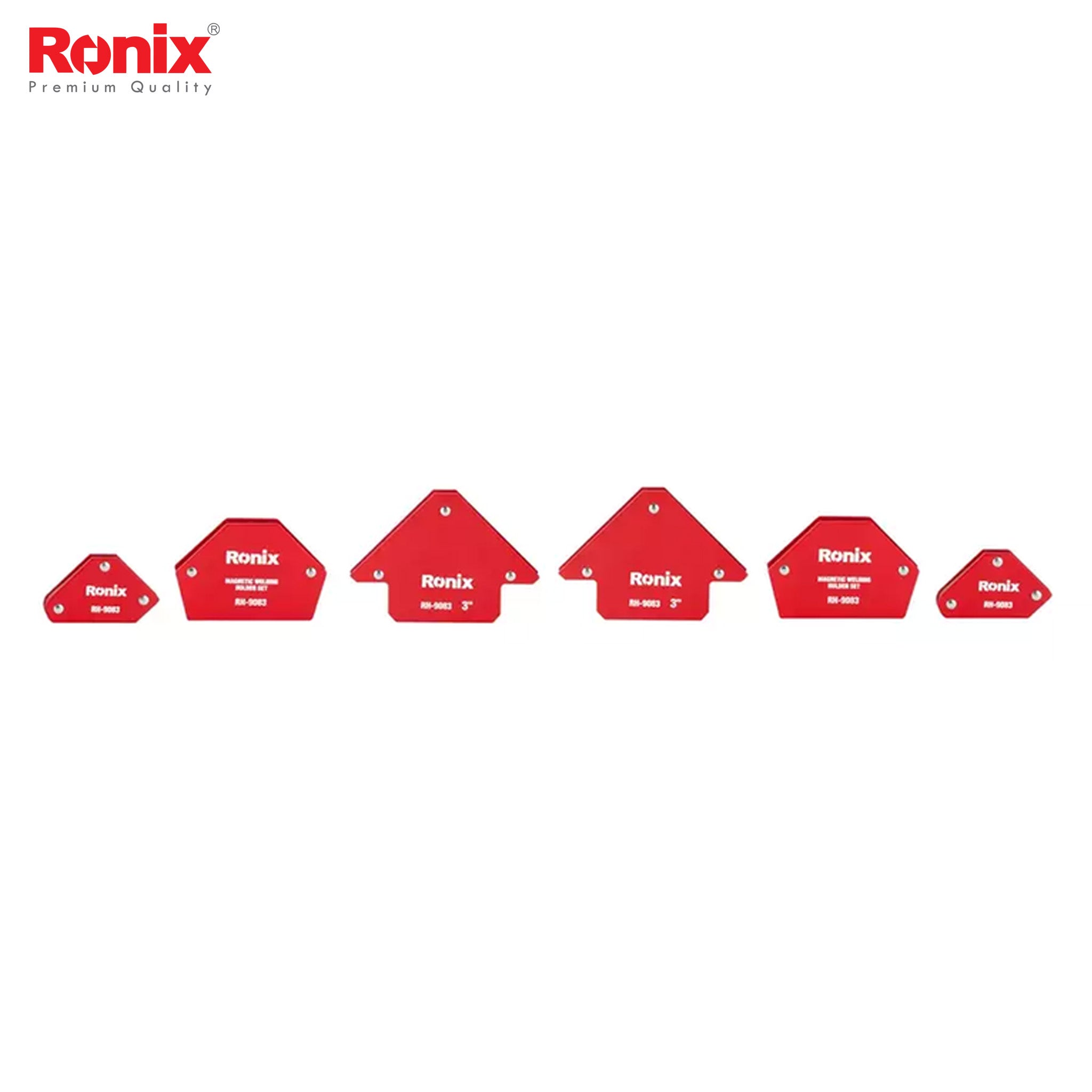

The RH-9083 Welding Magnet Set includes two 3-inch 15mm magnets that can hold up to 12 kg, two 12mm mini holders that can hold up to 4 kg and two hex magnets of 14.5mm with 8kg pulling force. This gives you options for handling different-sized workpieces securely, depending on the weight of the material. This set is made for holding metal pieces in place while you weld or solder. The strong magnets make sure the metal doesn’t move, letting you work easily and more accurately.
Body
The holders in this set are made of high-quality A3 steel and feature a powerful ferrite magnet that are built to last. They are resistant to rust and corrosion, making them durable and reliable even in harsh working conditions. This ensures the magnets perform well without losing efficiency over time. Each one of the magnets in this set comes with specific dimensions and thicknesses that make them compact yet powerful. For example, the 3-inch magnets have a thickness of 15mm, and the hex magnets are slightly thinner at 14.5mm. The overall compact design ensures that the set is easy to handle and store, without taking up much space.
Holding Angles
Each magnet in the RH-9083 set offers multiple holding angles. The 3-inch magnets support 45°, 90°, 135°, and 180°, while the mini and hex magnets offer a variety of angles ranging from 30° to 180°. This flexibility allows you to position the metal exactly as you need for different welding angles.
Packaging

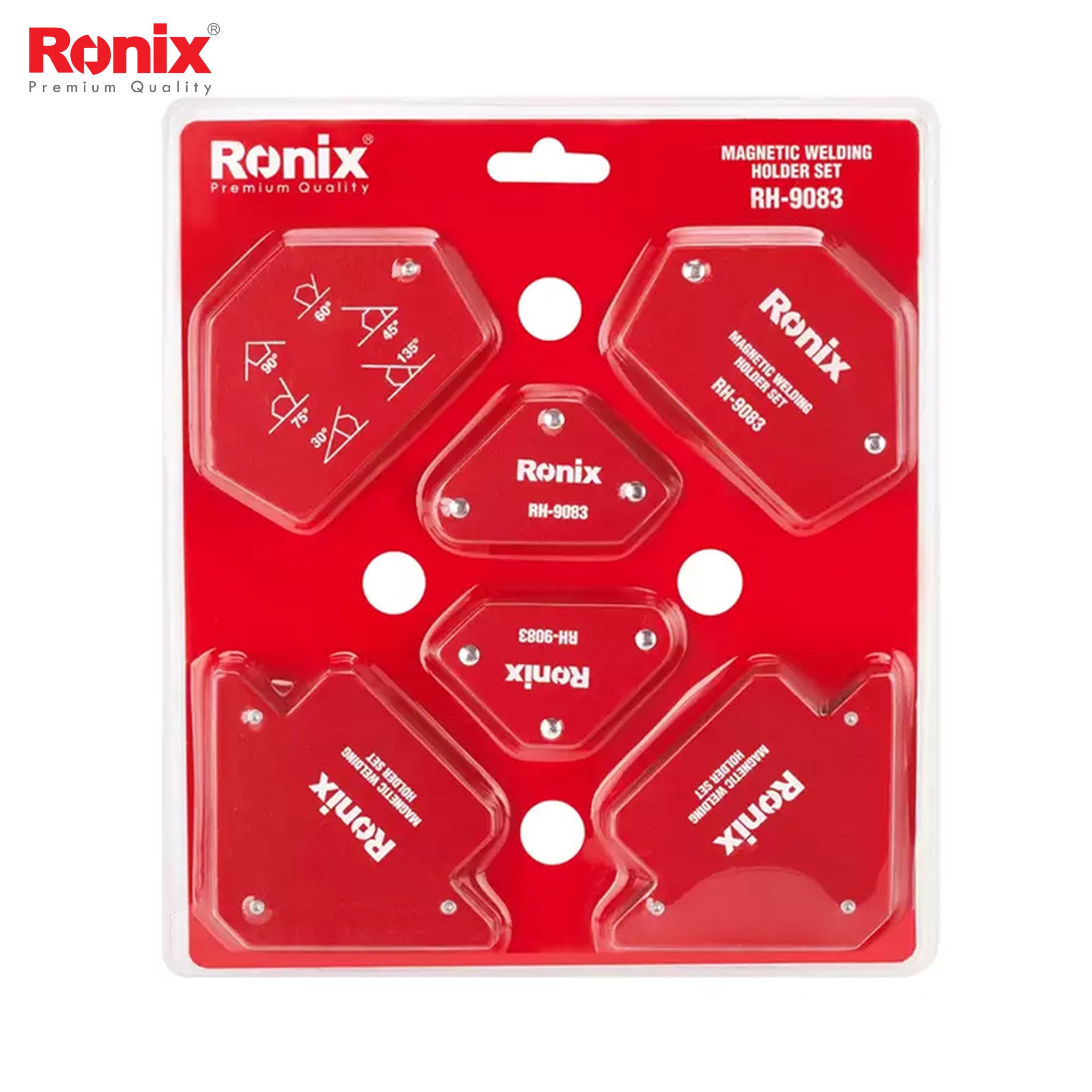

Ronix RH-9083 magnetic welding holder set is supplied in a double blister pack.
