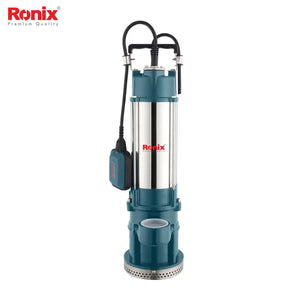

Ronix Submersible pump 2HP - RH4033
21668Description
The 2HP Submersible Pump (model RH-4033) is designed for tough, heavy-duty tasks, offering a flow range from 2 to 9.2m³/h and a maximum head of 48m. With 2-inch inlet/outlet ports and a solid passage diameter of 4mm, it effortlessly handles both liquids and solids. Built with a cast iron body and stainless steel motor housing, this pump is tough and durable. The IP68 protection ensures it's resistant to dust and water, making it perfect for challenging environments. Whether you're dealing with wastewater, sewage, or other demanding applications, this pump delivers consistent, high-efficiency performance you can rely on.
Specifications
| Model | RH-4033 |
| Power | 2 HP |
| Voltage | 220 V |
| Frequency | 50 Hz |
| Min.Flow | 2 m³/h |
| Max. Flow | 9.2 m³/h |
| Min.Head | 0.5 m |
| Max. head | 48 m |
| outlet port diameter | 2 inch |
| Speed | 2850 RPM |
| Max. liquid temperature | 0-35 ℃ |
| Max. Ambient temperature | 0-40 ℃ |
| Working Pressure | 0-4.8 Bar |
| solid passage diameter | 4 mm |
| max immersion depth | 5 m |
| max dry running tim | 10 seconds |
| Protection level | IP68 |
| Insulation Class | B |
| Pump housing material | CAST IRON |
| Motor housing material | S/S 201 |
| Mechanical seal material | SIC-SIC/Ceramic-Graphite |
| Motor protection | WITH |
| Coil winding material | COPPER |
| Impeller material | PPO |
| shaft material | 316+45 |
| Weight | 23 Kg |
| Supplied In | honeycomb carton |
Detailed Description
Efficient, durable, and ready for any challenge – the 2HP Submersible Pump gets the job done. Read on to learn more about its powerful features!
Motor and mechanism
The 2HP Submersible Pump (RH-4033) is powered by a strong motor that delivers reliable performance even in tough conditions. With a speed of 2850RPM, it provides a steady flow range from 2 to 9.2m³/h. The motor housing is made of durable stainless steel, protecting it from corrosion and wear. The pump is designed to handle both liquids and solids, with a 4mm solid passage for smooth operation. For added reliability, the mechanical seal uses SIC-SIC/Ceramic-Graphite materials to minimize wear and leaks, ensuring long-lasting performance.
Pump
The 2HP Submersible Pump (RH-4033) is built for heavy-duty jobs. With a 2-inch inlet and outlet, it provides smooth water flow, while the cast iron body ensures durability. It can handle a flow rate between 2 to 9.2m³/h and lift water up to 48m, making it perfect for both light and tough tasks. The 4mm solid passage lets it handle liquids with small solids, so it's ideal for sewage and wastewater. This pump is designed to get the job done, no matter the conditions.
Body
This item has a strong cast iron body, designed to last and handle tough jobs. Its durable construction ensures reliable performance, while the stainless-steel motor housing provides extra protection. With a 2-inch inlet and outlet, it efficiently moves water and works smoothly even when dealing with solids. This robust design makes it perfect for demanding tasks, whether it’s sewage or wastewater pumping.
Safety
Designed with safety in mind. With an IP68 rating, it’s fully protected from dust and water, so it can handle tough conditions. It also has a thermal protector to prevent overheating, keeping things running smoothly. Plus, it can run dry for up to 10 seconds, giving you extra peace of mind.
Package
The 2HP Submersible Pump (RH-4033) is packed in a strong honeycomb carton, designed to protect the pump during delivery. The packaging ensures it arrives safely, so you can get started on your project without any hassle.
