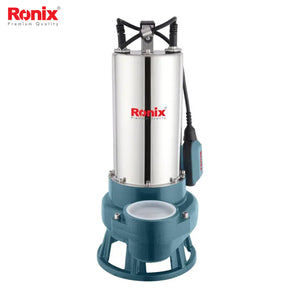

Ronix Submersible Sewage Pump 2Hp - RH4041
21669Description
Discover the 2HP submersible sewage pump! a reliable, high-performance option that handles even the toughest wastewater and sewage jobs effortlessly. This 2HP submersible sewage pump runs at 2850 RPM and has a max flow rate of 36m³/h, making it great for moving wastewater, sewage, and slurry in various settings like homes, businesses, and industrial sites. With its powerful motor, it can handle large volumes of waste and solids up to a certain size. Made from durable, corrosion-resistant materials, the pump ensures reliable, low-maintenance operation. Its high flow rate and speed make it perfect for efficient waste removal in tough conditions.
Specifications
| Model | RH-4041 |
| Power | 2 HP |
| Voltage | 220 V |
| Frequency | 50 Hz |
| Min.Flow | 5 m³/h |
| Max. Flow | 36 m³/h |
| Min.Head | 2 m |
| Max. head | 13.5 m |
| outlet port diameter | 3 inch |
| Speed | 2850 RPM |
| Max. liquid temperature | 0-35 ℃ |
| Max. Ambient temperature | 0-40 ℃ |
| Working Pressure | 0-1.35 Bar |
| solid passage diameter | 25 mm |
| max immersion depth | 5 m |
| max dry running tim | 30 seconds |
| Protection level | IP68 |
| Insulation Class | B |
| Pump housing material | CAST IRON |
| Motor housing material | S/S 304 |
| Mechanical seal material | SIC-SIC/Ceramic-Graphite |
| Coil winding material | COPPER |
| Impeller material | CAST IRON |
| shaft material | 316+45 |
| Weight | 26.4 Kg |
| Supplied In | honeycomb carton |
Detailed Description
Ronix Rh-4041: Built to get the job done right. Keep reading to see what makes it stand out!
Motor and mechanism
The Ronix RH-4041 comes with a 2-horsepower motor, operating efficiently within a 220-240V range at 50Hz. With the ability to spin the impeller at 2850RPM, it delivers powerful performance in any task.
Pump
This model handles a flow range from 5 to 36m³/h and operates at a pressure of 1.35 bar. With a max head of 13.5m and a 3-inch inlet/outlet port, it’s built to tackle a variety of tasks with ease and efficiency.
Body
The Ronix RH-4041 has a strong cast iron body for durability, with a 3-inch inlet and outlet for smooth water flow. The stainless-steel motor housing provides extra protection, and the pump is built to handle liquids up to 35°C and ambient temperatures up to 40°C.
Safety
The Ronix RH-4041 is designed with safety features, including an IP68 rating, making it fully dustproof and waterproof. It also has a thermal protector to prevent overheating and maintain reliable performance. Additionally, it can run dry for up to 30 seconds, offering extra security during use.
Packaging
The Ronix RH-4041 is packed in a durable honeycomb carton for secure shipping. This ensures it arrives safely and is ready to use right away.
